Any modern building, be it a home, commercial plaza, or industrial building, is powered by Electrical Equipment. Electricity is needed in almost all operations, whether it is in the operation of the daily appliances or the heavy machinery. But along with this dependency comes risk, and this is the reason why protection systems such as the circuit breaker are important.
Voltage fluctuation, overloading, and poor wiring are problems that are prevalent in Pakistan. These issues may cause equipment malfunction, fire danger or even severe injury without the appropriate protection. That is why the choice of the breaker, cables, and electrical tools is not only a technical but also a safety decision.
This detailed guide by Tarmal Construction will tell you all you need to know about what is a circuit breaker, what are the types of circuit breakers, the prices of circuit breakers in Pakistan and even a comprehensive guide to cables, electrical tools, lighting and switchgear systems.
What is a Circuit Breaker?
A circuit breaker is a type of electric equipment that is used to automatically shield a circuit in case of over current. When the electric current flowing is more than a safe amount, the breaker automatically cuts off the circuit, avoiding excessive heating, sparks or fire.
And in case you are asking yourself what is an electrical breaker, the easiest way to comprehend it is as follows: it is a protective switch, which is automatically turned off when something is wrong.
Circuit breakers can be reused as opposed to traditional fuses that must be replaced upon blowing. This renders them more effective and cost-efficient and popular in the modern electrical systems.
The Working of a Circuit Breaker
A circuit breaker will continuously check the current flow. When it detects:
- Overload (excessive current flowing)
- Short circuit (live circuit to neutral circuit)
- Fault conditions
It immediately causes a shortcut and breaks the circuit.
Why Circuit Breakers are Essential
- Eliminate electrical hazards due to overheating.
- Guard against spoilage of appliances.
- Ensure safety of occupants
- Reduce maintenance costs in the long run
A fault that is small can end up as a big issue without a suitable electric breaker.

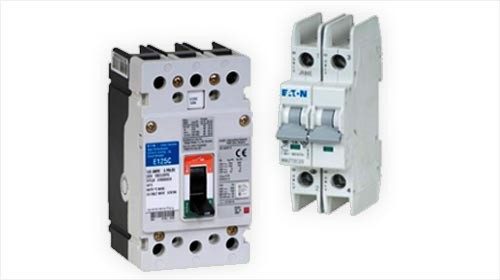

Types of Circuit Breakers
Not all circuit breakers are the same. Various applications are going to need different types of breakers based on the load, environment and system design.
Typical ones in use in Pakistan.
1. Single Pole Breaker
Applied in residential circuits to lighting and to small appliances. It works with a single live wire, and is suitable in low power situations.
2. Two Pole Circuit Breaker.
Heavier loads like air conditioners and water heaters are fitted with a two pole circuit breaker. It is used to control live and neutral wires and provides enhanced protection.
3. Four Pole Breaker
Four pole breaker is commonly applied in industrial applications and three phase systems. It guarantees full isolation and shield in high-power conditions.
4. Earth Breaker (ELCB / RCCB)
This is a breaker which senses leakage current and avoids electric shock. When electricity is passed on a conductive surface (such as a human body), it breaks immediately.
5. DC Circuit Breakers to Solar.
DC circuit breakers of solar have become necessary with the emergence of solar systems. They are specifically made to operate with direct current, which acts differently to the AC.
6. Changeover Breaker
A changeover breaker can be used to alternate between two power supplies, e.g. main supply and generator. It is commonly used in areas with frequent load shedding.
The Price of Circuit Breakers in Pakistan
When purchasing electrical equipment in Pakistan, cost is always a major consideration. Circuit breaker price in Pakistan varies based on various factors such as the brand, amp rating and type.
Price Influencing Factors
- Amp rating (e.g., 32A, 63A)
- Type (AC, DC, earth leakage)
- Brand (local vs imported)
- Quality of construction and certifications.
For example:
The 32 amp circuit breaker price in Pakistan is relatively cheap and is recommended to use in a home.
The 63 amp circuit breaker price in Pakistan is high with respect to high capacity.
The dc breaker price in Pakistan is higher because it is solar compatible.
Several professionals would like branded products such as Chint breaker and Schneider. Schneider breaker price in pakistan search is common due to its durability and performance.
Selection of the Best Breaker in Pakistan
The choice of best breaker in Pakistan is not to choose the most expensive, but the one that will fit best.
Considerations of the Key Factors.
- Load requirement and use.
- Type of building (residential, commercial, industrial)
- Occupational health and safety.
- Brand reliability
- Availability of spare parts
An incompetent breaker can malfunction when a fault occurs, and it would be counterproductive. This is the reason why it is important to invest in the trusted brand and the appropriate installation.
DC Circuit Breakers of Solar Systems
In Pakistan, solar power is quickly increasing with the escalating electricity prices. Nonetheless, solar systems need particular protection, and this is where dc circuit breakers for solar come in.
DC current is continuous and difficult to interrupt in contrast to AC current. This renders DC breakers more progressive and critical to safety.
Importance in Solar Systems
- Precautions against overloading of solar panels.
- Prevent damage to inverters
- Safe shutdown of system.
- Reduce risk of electrical fires
It is a common mistake to use a standard AC breaker in a solar system and is to be avoided under all circumstances.
Electrical Wiring and Cables
The lifeblood of any electrical cable. The finest circuit breaker will not be able to make up the bad wiring.
Pakistan Cables and Fast Cables are also popular brands in Pakistan that are trusted to be of quality and consistency.
- Electrical Wires
- Copper wire -Optimum performance and longevity.
- 2 core wire – Simple circuits.
- 3 core wire – Appliances and grounding.
The cost should not take precedence when considering copper wire price in Pakistan or electric wire price in Pakistan, but quality should always be considered. Poor-grade wires have the potential of becoming hot and insulating.
The Importance of Quality Wiring
- Reduces energy loss
- Improves system efficiency
- Enhances safety
- Extends the lives of appliances.
- Electrical tools and equipment.
Electrical work must be precise and with the right tools. Poor connections or even accidents may be caused by using the wrong tools.
Essential Electrical Tools
- Digital multimeter – Voltage, current and resistance.
- Wire stripper – Safely removes insulation
- Nose plier- This is a tool that is used to grip and bend wires.
- Electrical tester- Tests live current.
A full-fledged electrical tool kit means efficiency and safety particularly to technicians on-site.
LED Bulbs and Lighting Solutions
The lighting has also developed tremendously, and LED bulbs in Pakistan are the standard because of their energy efficiency and longevity.
Benefits of LED Light Bulbs
- Lower electricity consumption
- Longer lifespan
- Better brightness
- Eco-friendly
In the context of examining the bulb price in Pakistan, wattage and quality are important factors to look at over price. Inexpensive bulbs are short lived and do not offer quality lighting.

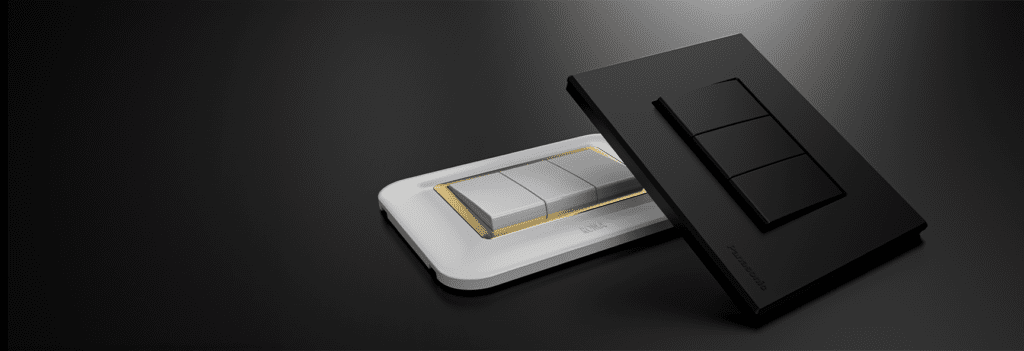

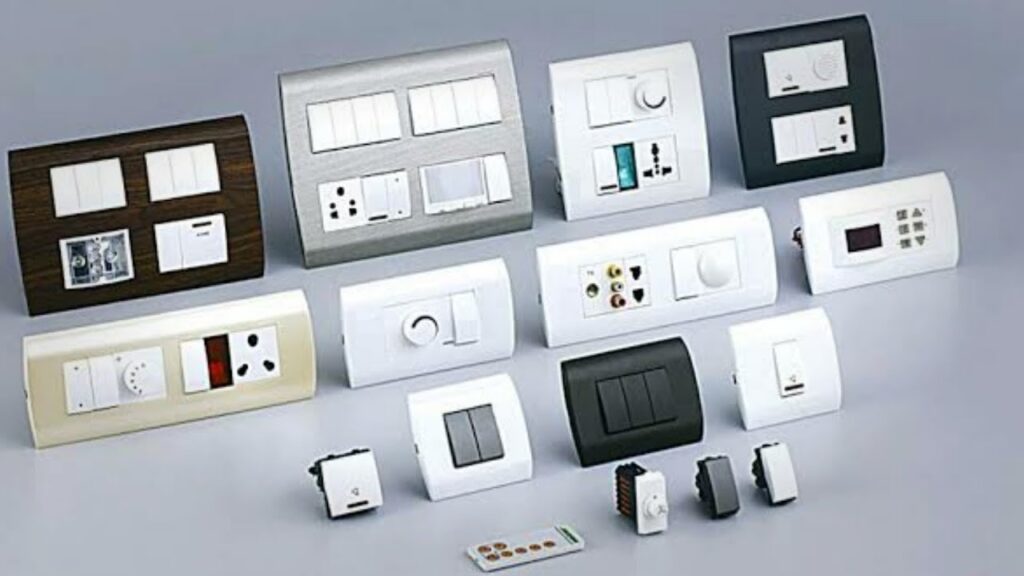

Switchgear, Switches & Sockets

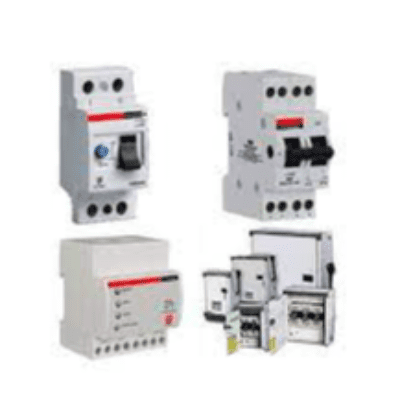

Answering the question “what is switchgear”, Switchgear is equipment that is used to isolate, protect and control electrical equipment. Sockets work together with circuit breakers to ensure a safe electrical system.
Common Components
- Switches and sockets
- 3 pin socket grounded appliances.
- Multi plug socket to be convenient.
- Heavy load socket in industry.
In choosing the sockets and switches brands in Pakistan, it is important to pay attention to their durability, safety and insulation.
Conclusion
The achievement of a safe electrical system is not through the use of one good component; rather it is a system of breaker cables, tools and accessories that is selected to accomplish the aim of the safe electrical system. All parts are important and neglecting any of them can put the whole system at risk.
Good circuit breakers, correct wiring and quality tools are worth investing in, and will guarantee long term safety and performance. Although it might be tempting to save on the expenses by opting to buy less expensive alternatives, this will cause greater costs in terms of maintenance, repairs and possible damage.
At Tarmal Construction, the aim is to offer equipment that will work effectively in the real conditions in Pakistan. You can be working on a small residential project, or a large industrial setting but with the right electrical components, you will always achieve better results, better safety and better peace of mind.
FAQs
What is the meaning of a circuit breaker?
A circuit breaker is a gadget that disconnects the electric power when it is overloaded or short circuited.
What is the difference between a two pole and four pole breaker?
Heavy household loads are fed on a two pole breaker, whereas three-phase industrial systems use a four pole breaker.
How much is the average price of a circuit breaker in Pakistan?
The cost of the prices depends on the amp rating and brand, higher capacity breakers are expensive.
Which is the best breaker when using solar systems?
DC circuit breakers are designed specially to work with solar systems and must always be employed.
